Electric Ss Fresh Sweet Potato Cleaning Machine Rotary Cleaner Starch Product Line
Description of sweet potato washing machine
Rotary washer is the washing section machine in starch processing line and it adopts the principle of countercurrent to clean out mud, sand and small stones effectively.. Rotary drum washer is applied to wash potatoes and sweet potatoes and etc.
Advantages of rotayr washer
1. Combining the latest technology and years' experience into a whole;
2. Adopting method of countercurrent washing, excellent washing result, mud and sand removing;
3. Reasonable feeding structure. The damage rate of raw material is under 1% and this can ensure high starch extraction yield;
4. The rotating drum is made of high quality shell perforated with numerical control punch for long time;
5. Easy to installation and maintenance.
Main technical parameters
|
Model
|
Drum diameter
(mm)
|
Drum length
(mm)
|
Capacity
(t/h)
|
Power
(Kw)
|
Dimension
(mm)
|
Weight
(Kg)
|
| DQXJ190x450 |
Φ1905 |
4520 |
20-25 |
18.5 |
5400x2290x2170 |
5200 |
| DQXJ190x490 |
Φ1905 |
4920 |
30-35 |
22 |
5930x2290x2170 |
5730 |
| DQXJ190x490 |
Φ1905 |
4955 |
35-50 |
30 |
6110x2340x2170 |
6000 |
Working principle
The washing machine is designed with counter-current washing, that is, the washing water enters the washing machine from the material outlet. The material enters into the rotating drum and is cleaned in the tumbling collision. Meanwhile, the material's skin is effectively removed. The cleaned sediment skin falls between the drum and the inner wall of the water tank through the mesh, moves forward under the push of the blades, and is discharged through the overflow tank.
Packing & Shipping
Packing & Shipping: Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).
Our Certificate
The Key Technology And Equipment Of Potato Raw Whole Powder Processing and Study On Anti-browning Technology And Equipment Of Potato Flour Of Zhengzhou jinghua Industrial Co., LTD Have Obtained The Scientific And Technological Achievement Evaluation Certificate Issued By The Chinese Cereals And Oils Association.
Product Tags:
|
|

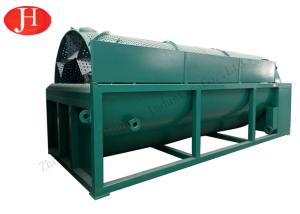

18.5Kw Ss Rotary Sweet Potato Cleaning Machine 35t/H Images
|
